Adelante for the perfect peel. Adelante peel-away introducer system one of the most advanced introducer systems available. To fulfill any need for minimal invasive venous access, Oscor offers a complete line of peel away introducers, hemostasis valve introducers and introducer kits

Adelante® Magnum

nav arrow Back
  • Features
  • Benefits
  • Specifications
  • Related Products

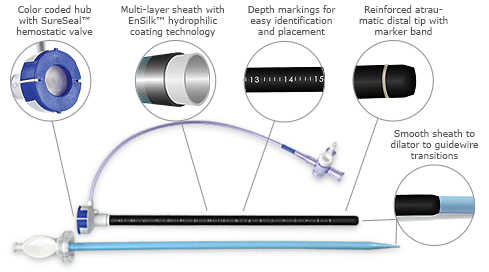

The Adelante® Magnum high performance hemostatic valve introducer, color coded hub with SureSeal hemostatic valve, multi-layer sheath with EnSilk hydrophilic coating technology, depth markings for easy identification and placement, reinforced atraumatic distal tip with marker band, smooth sheath to dilator to guidewire transitions



• Reliable SureSeal™ hemostatic valve technology to minimize blood loss and air embolism even with the insertion of several devices and wires
• Fluid-activated hydrophilic coated sheath, featuring Oscor’s proprietary EnSilk™ coating, for exceptional sheath insertion and access
• Multi-layer sheath design provides exceptional kink resistance, while maintaining superb flexibility
• Clear markings on sheath to indicate insertion depth
• Enhanced atraumatic distal sheath tip with radiopaque marker band for accurate positioning under fluoroscopy
• Dilator locks secure into sheath and accepts maximum guidewire up to 0.038”/0.96 mm
Model#
Set
(One per box) 		French Size Sheath Length Dilator length
16F
ASM016020 16 F 20 cm 25 cm
ASM016030 16 F 30 cm 35 cm
ASM016035 16 F 35 cm 40 cm
18F
ASM018020 18 F 20 cm 25 cm
ASM018030 18 F 30 cm 35 cm

Introducers supplied sterile. For single use only.
Available bulk upon request. Standard lengths are noted above.
Other lengths available upon request.
For additional information, e-mail us at sales@oscor.com

Adelante® Magnum Set Contains:

• (1) One Sheath

• (1) One Dilator


Click the links below to see related products


Custom Guiding Sheaths and Catheters
Accessories
Implantable Pacing Leads
How to buy

The Adelante® Magnum introducer sheath with high performance hemostatic valve

The Adelante® Magnum is a high performance hemostatic valve introducer for large size vascular access.
The Adelante® Magnum features a proprietary multilayer hydrophilic coated sheath, having a special designed distal tip portion to accept and tolerate the insertion and manipulation of large and complex devices. The Adelante® Magnum SureSeal™ technology facilitates optimum hemostasis, allowing the insertion of multiple catheters and wires simultaneously with minimal blood loss.
