Implantable pacing lead header photo showing Physique active fixation pacing lead and Petite passive fixation lead

Epicardial MP

nav arrow Back
  • Features
  • Specs
  • Related Products

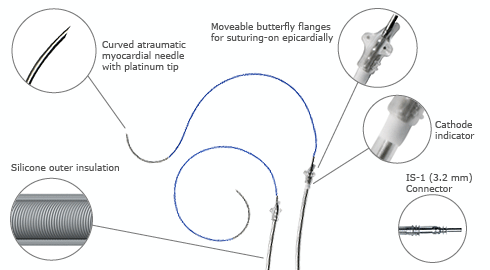

The Epicardial permanent pacing lead - showing Curved atraumatic thoracic needle with platinum tip, Moveable butterfly flanges for suturing on epicardially, Cathode indicator, Silicone outer insulation, IS 1 (3.2mm) connector
Models
MP 35 PV (35cm)
MP 40 PV (40cm)
MP 52 PV (52cm)
MP 35 BV (35cm)
MP 40 BV (40cm)
MP 52 BV (52cm)
Ventricular placement
Yes
Yes
Atrial placement
Yes
Yes
Polarity
Unipolar
Bipolar
Fixation
Suture-on
Tip electrode
Pt/Ir
Ring electrode
Pt/Ir
Lead body material
Silicone
Conductor
Hexafilar
Compatibility
Pulse generators accepting IS-1 connectors
Click the links below to see related products


Lead Introducers
Lead Adaptors
Custom Leads
How to buy
Reimbursement

Epicardial MP suture-on permanent pacing lead

• Unipolar and bipolar
• Epicardial suture-on
• Flexible electrode spacing
• IS-1 compatible


Not for sale in the U.S.A.
